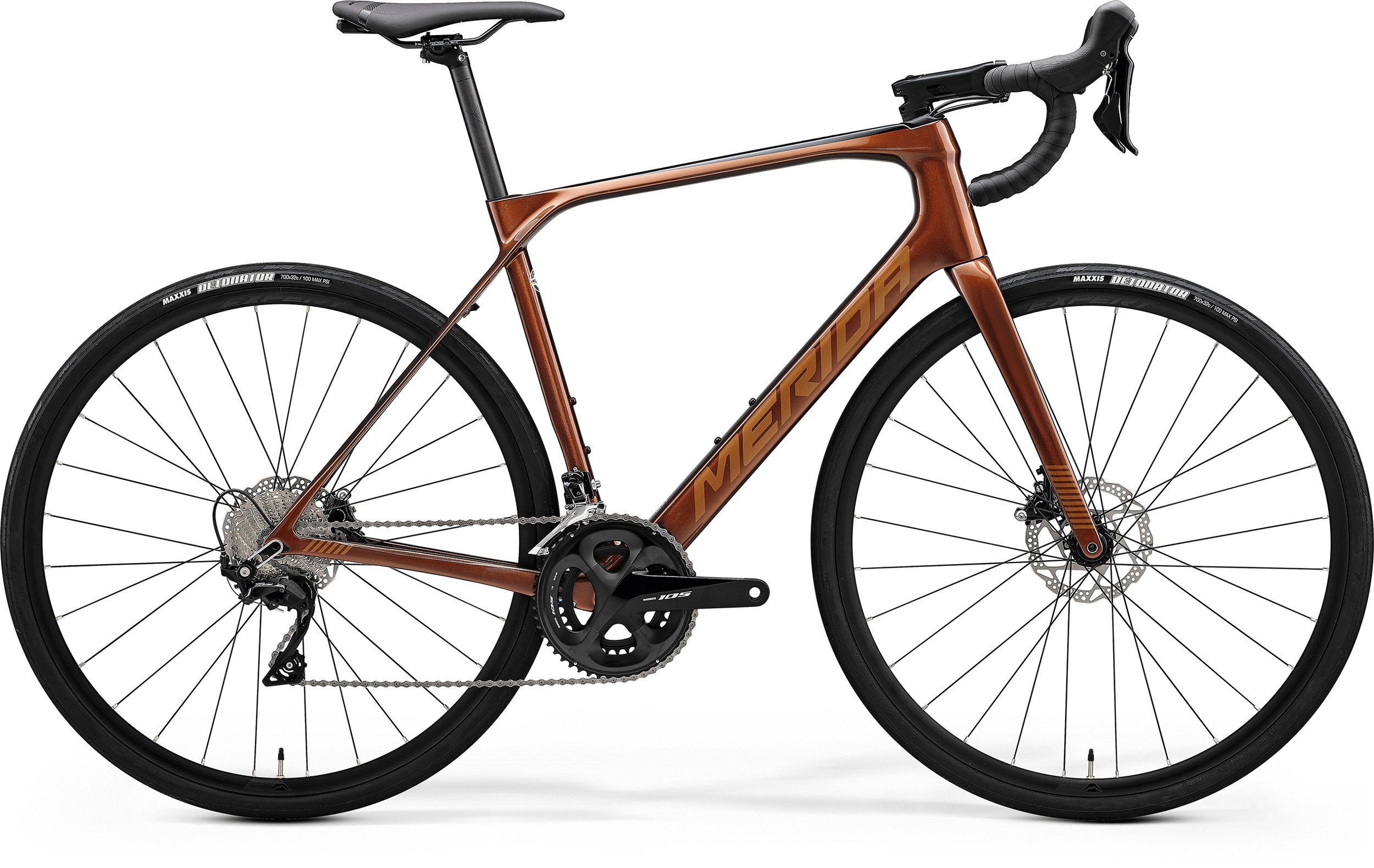

Merida Scultura Endurance 4000 - Bronze

from £1,650.00
sale

Carbon tarmac endurance bike with 2 x 11 Shimano 105 transmission and hydraulic disc brakes.

Size:
Add To Cart

Carbon tarmac endurance bike with 2 x 11 Shimano 105 transmission and hydraulic disc brakes.

Carbon tarmac endurance bike with 2 x 11 Shimano 105 transmission and hydraulic disc brakes.

Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

SPECIFICATION

PROMOTION RIBBON

  • Price Crash

FRAME

  • CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)

FORK

  • Scultura Endurance CF3 Disc; full carbon, tapered steerer. Max tyre size: 700 x 35c (700 x 32c with mudguard)

GEARS

  • 22

SHIFTERS

  • Shimano 105

FRONT DERAILLEUR

  • Shimano 105

REAR DERAILLEUR

  • Shimano 105; GS

BOTTOM BRACKET

  • Shimano BB71-41B, Pressfit 86.5

CHAIN

  • KMC X11

CHAINSET

  • Shimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)

CASSETTE

  • Shimano CS-HG700; 11-34 teeth; 11 speed

BRAKE LEVER

  • Shimano 105

FRONT BRAKE

  • Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor

REAR BRAKE

  • Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor

GRIP

  • Merida ROAD Expert

HANDLEBAR

  • Merida Expert SL; aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)

STEM

  • Merida Expert CW; aluminium; 31.8mm diameter; -8 degree rise - Stem length: 80mm (XXS), 90mm (XS), 100mm (S/M), 110mm (L), 120mm (XL)

HEAD SET

  • Merida-8151 Semi integrated

PEDAL

  • Not included

SADDLE

  • Merida Comp SL with V-mount; including Merida minitool

SEAT POST

  • Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back

WHEEL SIZE

  • 700c

RIMS

  • Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium

SPOKES

  • Double Butted Black stainless

FRONT HUB

  • VP CLK170F; 100x12mm; 28 spokes; Center lock

REAR HUB

  • VP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key

FRONT TYRE

  • Maxxis Detonator; 700 x 32C; Kevlar bead; folding

REAR TYRE

  • Maxxis Detonator; 700 x 32C; Kevlar bead; folding

COLOUR

  • Bronze

SEASON

  • 2023

For full geometry and sizing info please click here.
